6.5L Remote Fuel Filter Kit

DieselSite

  • $129.00



Build your own spin-on fuel filter setup with our hand-picked components.  Stop any debris from damaging your expensive injection pumps and injectors!

Recommended as part of any injection pump replacement to protect your expensive high pressure fuel system components!

Base Fuel Filter Kit Includes:
  • 4 Micron water coalescing filter with drain. Enjoy filter change intervals of at least 4x the life of a stock filter
  • High flow billet aluminum filter head with built in 3 hole universal mount
  • PTFE thread tape for NPT fittings
  • 1/4" hose and clamps
    • You can either piggyback off the factory engine mounted fuel filter or bypass it. Both installations are supported depending how you connect the hoses.
    • The fittings on the filter are 6AN and get adapted down to 1/4" barbs for using on stock trucks but the hose barbs can easily be swapped (see below)

Kit Options:

  • Add our mounting bracket that that provides a bolt-on solution off the side of the master cylinder (see photos)
    • This bracket has provisions for BOTH our fuel filter and coolant filter. You can run one or both and add-on in the future
  • Exclude mounting bracket if you already have it or want to install in a different location

Other add-ons:

  • Add our DS4 or DB2 injection pump fuel inlet upgrades in installs that will delete or bypass the factory fuel filter.
    • 3/8" inlet upgrade for DS pumps if you have a DS4 injection pump 1994+
    • 3/8" inlet upgrade for DB pumps if you have a DB2 injection pump 1993 & Older
      • This kit can also be used on 6.2L with DB2 pumps
    • Add our coolant filter kit now or purchase separately later on
    • 3/8" Pushlock fittings (available by request) to change to 3/8" hose

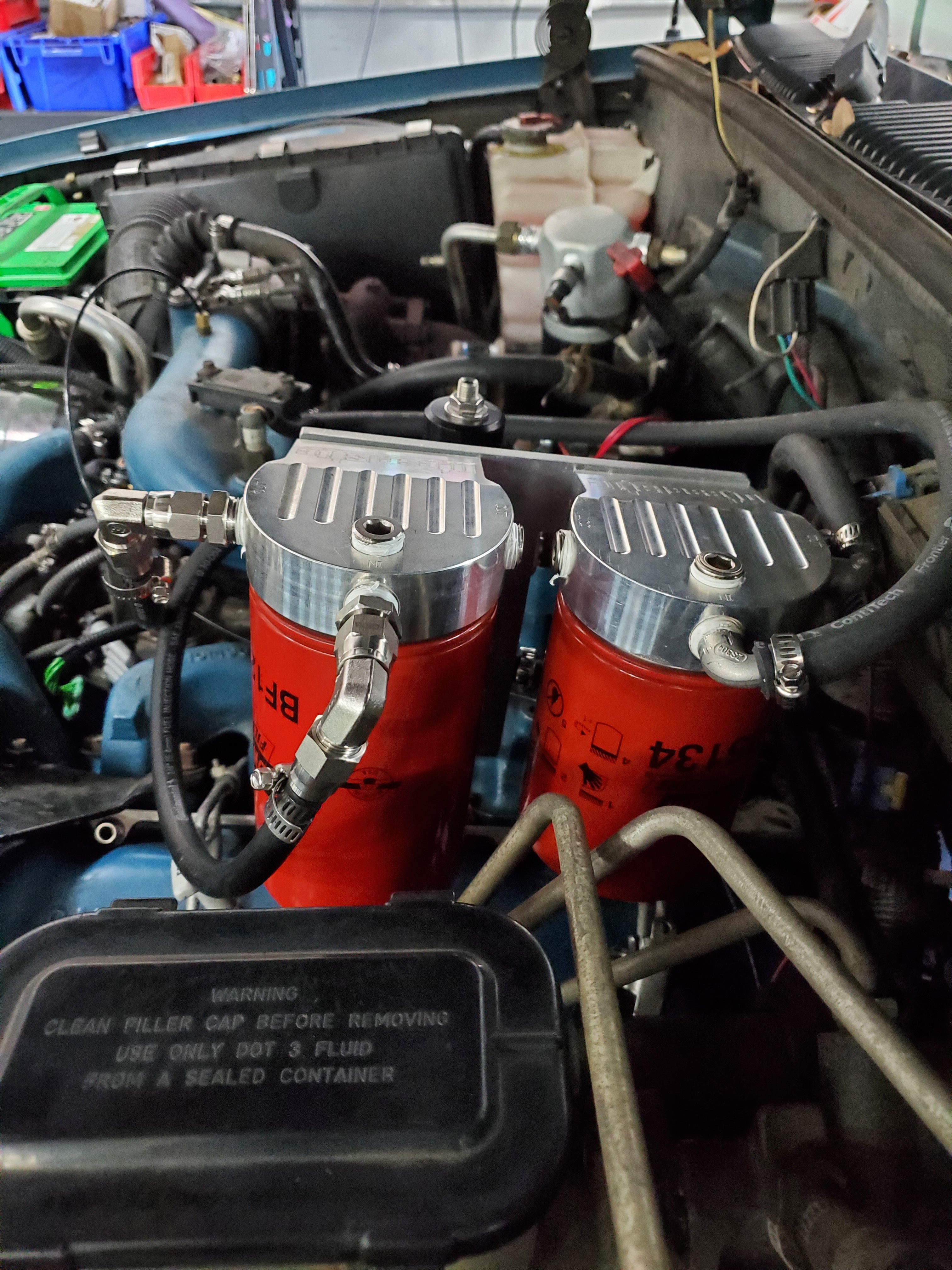

    A fully installed kit (Fuel Filter + Coolant Filter + Mounting Bracket):
